rxdart_devtools

Getting started

This tutorial walks you from a fresh Flutter app to seeing a live rxdart Subject in the DevTools panel.

Prerequisites

  • Flutter SDK installed (flutter --version works)
  • A Flutter app that already uses (or will use) rxdart

  1. Add the dependency to your app’s pubspec.yaml:

    dependencies:
      rxdart_devtools: ^0.1.1

    Then fetch it:

    Terminal window
    flutter pub get

    rxdart_devtools is a runtime dependency — its public API is called from your app code. The runtime is a no-op in release builds (see Track a subject — release mode), so leaving it in production is safe.

  2. Initialise the SDK in main() before runApp:

    import 'package:flutter/material.dart';
    import 'package:rxdart_devtools/sdk.dart';


    void main() {
      RxDartDevtools.init();
      runApp(const MyApp());
    }

    init() registers the runtime services that surface tracked streams to DevTools. It’s also a no-op in release mode.

  3. Track a Subject in your app code:

    import 'package:rxdart/rxdart.dart';
    import 'package:rxdart_devtools/sdk.dart';


    final counter = BehaviorSubject<int>.seeded(0)
        .track('counter')
        .asSubject();

    counter is a normal BehaviorSubject<int> — the rest of your code is unchanged. Every counter.add(...) will now be visible in the DevTools panel.

  4. Run your app and open DevTools:

    Terminal window
    flutter run

    Press d in the terminal (or use your IDE’s DevTools action) to open DevTools in a browser.

  5. Open the rxdart_devtools panel — look for the rxdart_devtools tab (wrench icon) in the DevTools toolbar. You should see counter listed with its current value (0). Push values to it from your app and they’ll appear live in the Current value card and Event log.

  6. Watch the Subject update live. As your app calls counter.add(...), the Current value card refreshes and each emission lands in the Event log:

    rxdart_devtools panel showing tracked Subjects

  7. Try injecting from the panel — add .enableInjection(parse: ...) to your Subject and the panel becomes a two-way surface. Type a value, hit Inject, and your stream receives it as if your app had pushed it:

    final counter = BehaviorSubject<int>.seeded(0)
        .track('counter')
        .enableInjection(parse: int.tryParse)
        .asSubject();

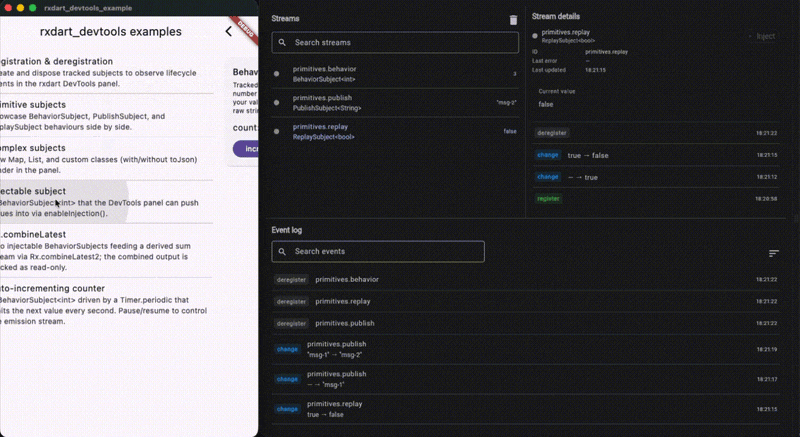

    Injecting values from the DevTools panel

    See Track a subject for more injection patterns.
